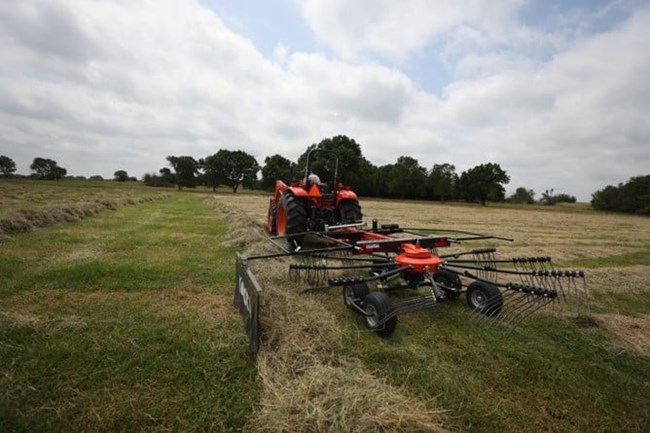

RA1042T
Rakes
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Easy Set for Transport
The Kubota RA1035 width can be reduced to 5'9" for transport and storage by placing the tine arms on the carrier frame. The Kubota RA1042T can be easily converted to 6’7” for transport and entering into smaller fields or narrow gates.
Exceptional Raking Performance
Up to eleven tangential tine arms and four double tines per arm provide high tine frequency to ensure clean raking performance in all types and volumes of crops.
Outstanding Durability
The Kubota rakes are equipped for maximum raking performance. The FarmLine rakes all feature 9mm wire diameter tines for outstanding durability.
Curved Tine Arms
All Kubota FarmLine rakes feature cranked tine arms for handling high volume crops, giving cleaner raking performance and optimized swath formation. This design ensures that the row of tines on each tine bar has a more effective approach angle to the oncoming crop and also gives a cleaner lift out of the tine from the formed swath.
Kubota Compact Rotor
The rotor is grease lubricated within a fully enclosed housing. The maintenance-free cam track, cam followers, as well as the bearings of the rotor star axles, are permanently running in an oil bath. Both the rotor and pinion shaft are mounted on two bearings for maximum strength and long service life.
Ideal for Low Horsepower Tractors
The Kubota RA1035 and RA1042T single rotary rakes are designed for low power requirements, while still delivering considerable working width of 9’2” & 11'6" with swath and 10’2” on the RA1042T & 13’9” including swath, respectively. With a pivoting three point linkage machine (RA1035) as well as a trailed version (RA1042T), there is a model to meet any field or crop needs.
FarmLine Rakes
Kubota's FarmLine rakes feature oil-immersed cam discs, guide rollers and tine bearings, making them low maintenance. All rakes are fitted with curved tine arms, to ensure a regular and even swath formation in all crop conditions. Additionally, the curved shape increases the tine working area as the rake is moving and allows a higher lift out of the swath, which is critical in high volume crops, ensuring a very uniform swath. Our expert knowledge in producing the right swath not only optimizes the capacity of the baler, but also increases the quality of the forage.
Specifications
| FarmLine | Standard | |
|---|---|---|
| ProLine | N/A | |
| Working Width ft. (m) | 13' 9" | |
| Transport Width ft. (m) | 6' 7" | |
| Transport Length ft. (m) | 13' 2" | |
| Parking Height ft. | 7' 7" | |
| Weight lbs. (kg) | 1257 (570) | |
| Capacity Theo. (Acres/h) | 11.4 | |
| Pivoting 3-pt Headstock (cat.) | N/A | |
| Lower Links (2-pt.) | N/A | |
| Linkage Drawbar | Standard | |
| Gauge Wheel 16" | Optional | |
| Rotor Diameter ft. | 11' (3.4) | |
| Swath Delivery | Left | |
| Number of Rotors | 1 | |
| Number of Arms Per Rotor | 11 | |
| Number of Double Tines/Arm | 4 | |
| Tine Diameter in. | .35" | |
| Continuous Cam Track | N/A | |
| Detachable Tine Arms | Standard | |
| Height Adjustment | Mechanical | |
| Tires (Rotors) | 18.5x8.5-8 | |
| Fixed Tandem Axle | Standard | |
| Pivoting Tandem Axle | N/A | |
| Stand. Tires (Carrying Frame) | N/A | |
| Carrier Arm Compensating | N/A | |
| Locking Catch for Slopes | N/A | |
| Warning Panels | Optional | |
| Road Lights | Optional |
