BV5200
Balers

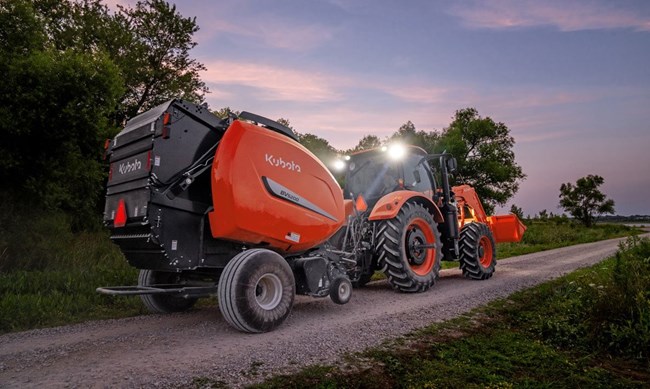

The Kubota BV5200 SC-14 series of balers are fully ISOBUS ready and come standard with a rotary intake 14 knife precutting system. These balers have been designed with silage in mind, but can handle all types of crops and conditions. The unique bale chamber design ensures the least amount of air in your silage bales, which increases your silage quality and bale density! Combine that with a hydraulic drop floor, endless belts, auto chain oilers, and the optional moisture sensor and the BV5200 is a great choice for your high capacity operation!
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
SuperCut-14 Knife Rotor (SC-14 Model)
The SuperCut-14 version of BV5200 is the ideal solution for silage applications. The 14 knife chopping system provides a fast and efficient flow into the baler. With a chopping length of 2.75" it is the ideal solution for producing dense and airtight bales. Also, the bale is easier to break up during the feeding process.
Control Terminal
The ISOGO Terminal is a universal ISO control terminal which can also be used with other Kubota implements. It gives you full control of all functions from the tractor cab and is shown on a large and very clear digital display. The ISOGO terminal monitors and controls all necessary functions with all relevant parameters/ information visible at a glance. The control box is also driving the binding automatically without any intervention from the operator.
Intelligent Density 3D
The Intelligent Density 3D bale chamber offers a combination of 3 rollers and 5 endless belts, giving it the ability to set the density of the bale in three different zones. The two aggressive front rollers that come in contact with the crop are constantly cleaned by scrapers and are designed to perform well in wet silage. They ensure instant and efficient bale start with immediate bale formation in all crop conditions.
Drop Floor for Easy Unblocking
The Kubota drop floor enables the operator to clear blockages easily from the tractor cab without any crop loss. Drop the floor and free the rotor blockage, engage the PTO to feed the blockage through and close the floor to continue baling. This standard feature reduces downtime and helps increase productivity.
High Performance Pick-Up and Intake
On Kubota's BV5200, the load on the tine bars is minimized by using two intermediate supports and two separate cam tracks located at either end of the pick-up. Slip clutch protection comes standard. A roller wind guard is fitted on rotor intake models which pre-compresses the crop, further boosting intake performance. The working width on the BV5200 is 86".
Specifications
| Length in. | 187" | |
|---|---|---|
| Width in. | 99" | |
| Height in. | 111" | |
| Weight lbs. (kg) | 7275 | |
| Diameter Min in. | 24" | |
| Diameter Max in. | 79" | |
| Bale Width in. | 47" | |
| Bale Height in. | 60" | |
| Bale Formation | 5 Belts + 3 Rollers | |
| Endless Belts | Standard | |
| Bale Ramp | Standard | |
| Working Width in. | 86" | |
| Number of Tine Rows | 5 | |
| Tine Spacing in. | 2.36" | |
| Windguard | Roller wind guard | |
| Pneumatic Gauge Wheel | Standard | |
| Flare to Flare Pickup | 86" | |
| Lift | Hydraulic | |
| Pickup Protection | Radial Clutch | |
| Fork Feeder | N/A | |
| Protection, Cam Clutch | N/A | |
| SuperCut-14 Knives | Standard | |
| Single Knife Protection | Standard | |
| Unblocking System | Hydraulic Drop floor | |
| 1 Main Chain | 1.25" | |
| 1 1/4" Main Drive Chain | Standard | |
| Wide Angle PTO Shaft | Standard | |
| Shear Bolt Protection | N/A | |
| Cam Clutch Protection | Standard | |
| Binding | Net / Twine | |
| Monitor | TellusGO/IsoMatch | |
| Twine | Double Arm | |
| ISOBUS | Standard | |
| Focus Terminal | Standard | |
| IsoMatch Tellus | Optional | |
| Hydraulic Outlets | 1SA + 1DA | |
| Wheels and Axles | 11.5/80-15 | N/A | |
| Wheels and Axles | 15.0/55-17 | Standard | |
| Wheels and Axles | 19.0/45-17 | Optional | |
| Wheels and Axles | 500/45-22.5 | Optional | |
| PTO rpm | 540CV | |
| PTO Protection | CamClutch | |
| Minimum PTO Horsepower Required HP/KW | 70 |
